Frequency Response Graphs

Fellow TalkBass.com member, ticol07, generously created the following graphs to help illustrate the frequency responses of the various cabinet simulations.

All data presented here is based on use of the Ampeg SVT amplifier model.

Additional graphs for other models can be found on the main thread, starting here.

Click here to return to the home page of this site.

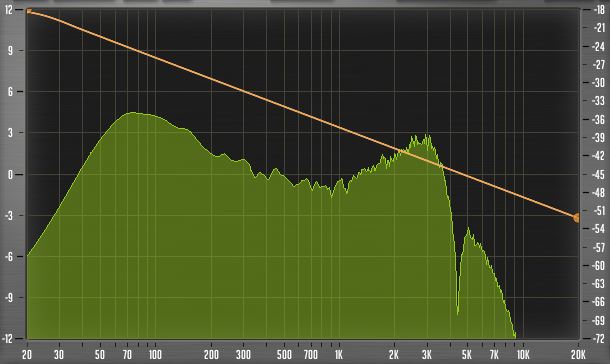

No Cabinet: (Ampeg SVT, Flat EQ, Mix = 0)

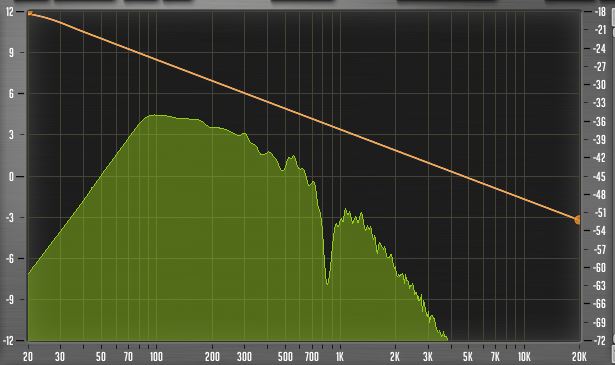

Ampeg 810E (8x10): (Ampeg SVT, Flat EQ, Mix = 100)

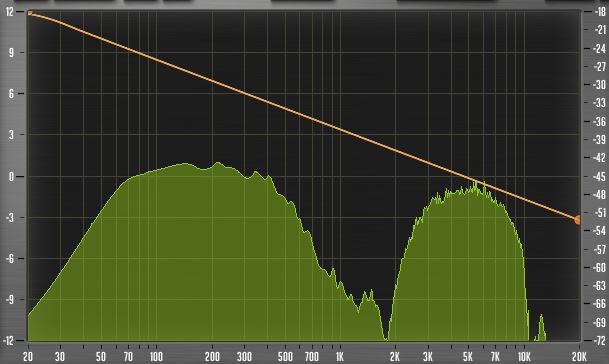

Marshall 1935A (4x12): (Ampeg SVT, Flat EQ, Mix = 100)

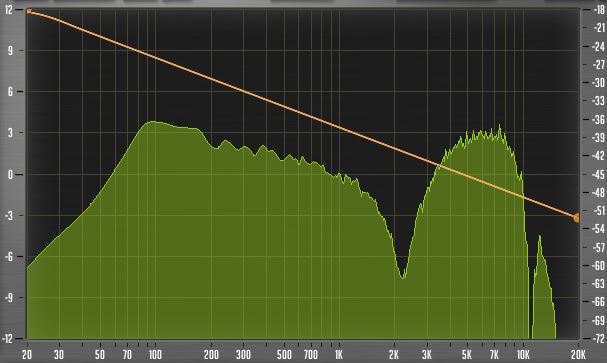

Fender Bassman (4x12): (Ampeg SVT, Flat EQ, Mix = 100)

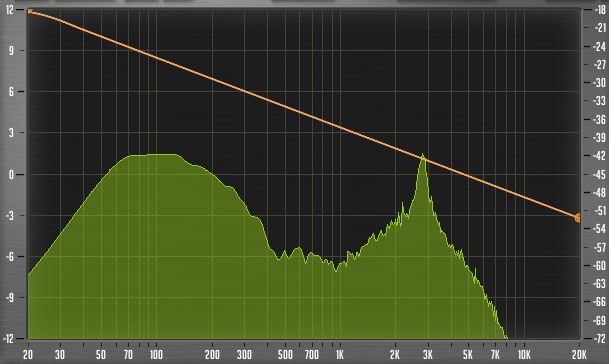

Hartke 4.5XL (4x10): (Ampeg SVT, Flat EQ, Mix = 100)

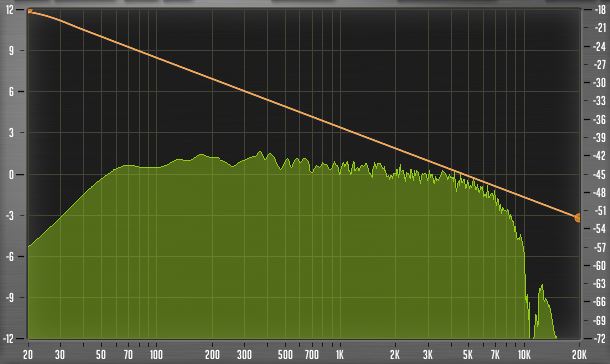

SWR Goliath (4x10): (Ampeg SVT, Flat EQ, Mix = 100)

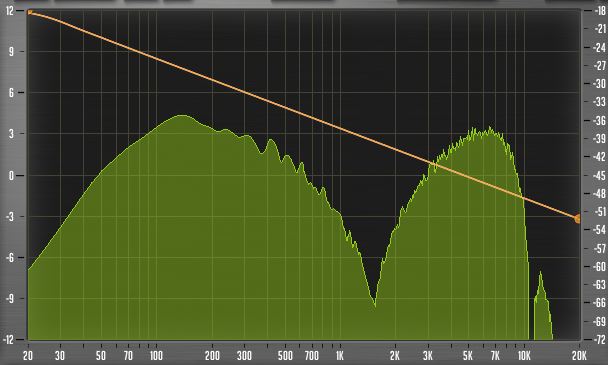

Aguilar GS410 (4x10): (Ampeg SVT, Flat EQ, Mix = 100)

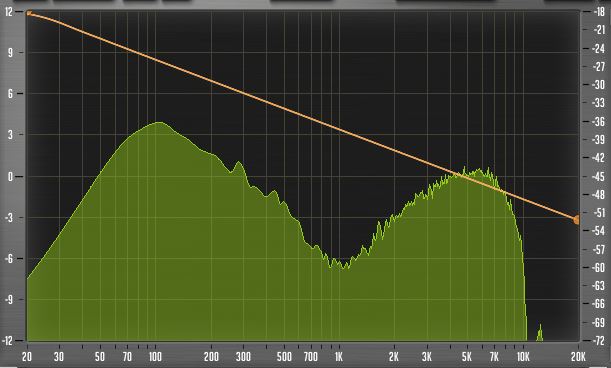

Gallien Krueger 410RBH (4x10): (Ampeg SVT, Flat EQ, Mix=100)

Eden D410XLT (4x10): (Ampeg SVT, Flat EQ, Mix = 100)

Acoustic 301 (1x18): (Ampeg SVT, Flat EQ, Mix = 100)

Polytone Mini Brute III (1x15): (Ampeg SVT, Flat EQ, Mix = 100)

Ampeg B-15 (1x15): (Ampeg SVT, Flat EQ, Mix = 100)

Markbass 12" Combo (1x12): (Ampeg SVT, Flat EQ, Mix = 100)
